iOS: Modify existing application configuration profile

Updated: at 05:25 PM

Introduction

In this post I will explain how to replace an existing application’s configuration profile, sign it, and deploy that application to a device.

By generating a new configuration profile you can specify certain things like which devices the application is allowed to run on and whether it is allowed to run in debug mode.

You can take an existing application and configure it to run on your own device in debug mode, which is useful for runtime analysis.

Get the IPA file

You will be using the UnCrackable-Level1.ipa from the OWASP MAS iOS Crackmes which can be found here

curl -L https://github.com/OWASP/owasp-mastg/raw/master/Crackmes/iOS/Level_01/UnCrackable-Level1.ipa -o UnCrackable-Level1.ipa

Generate a new configuration profile

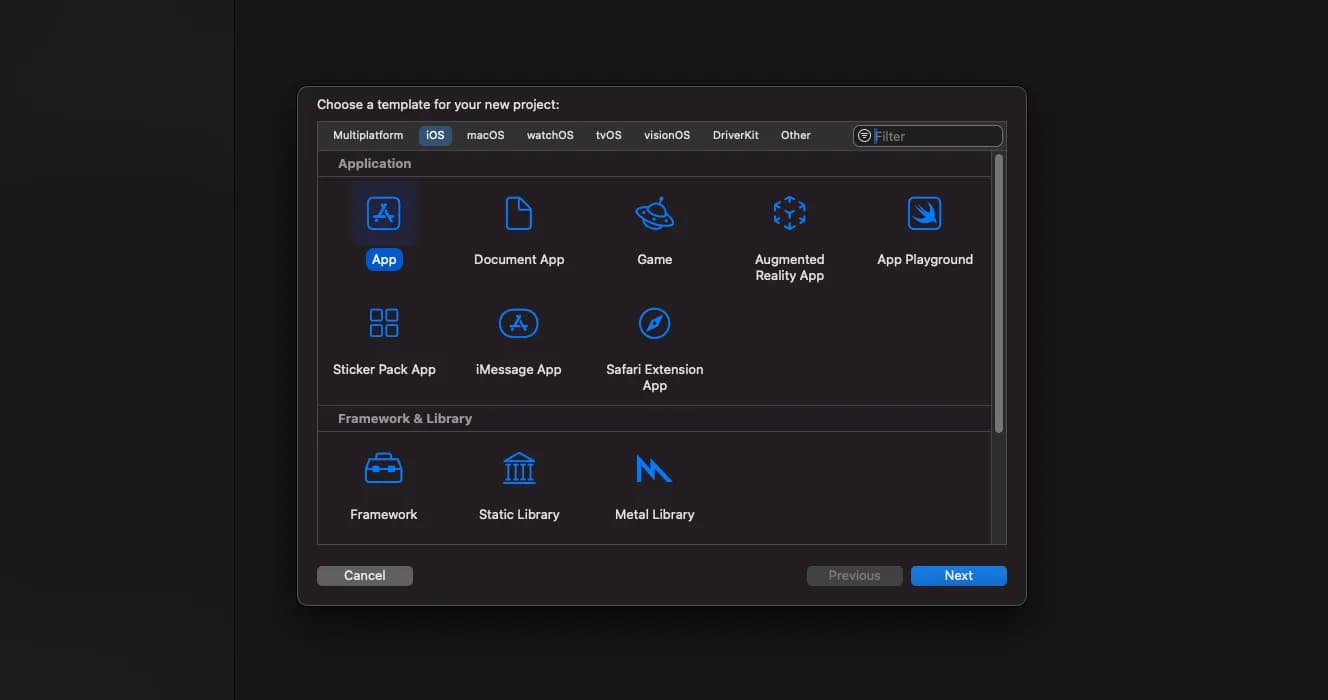

Create a blank iOS project in Xcode.

"Create iOS project"

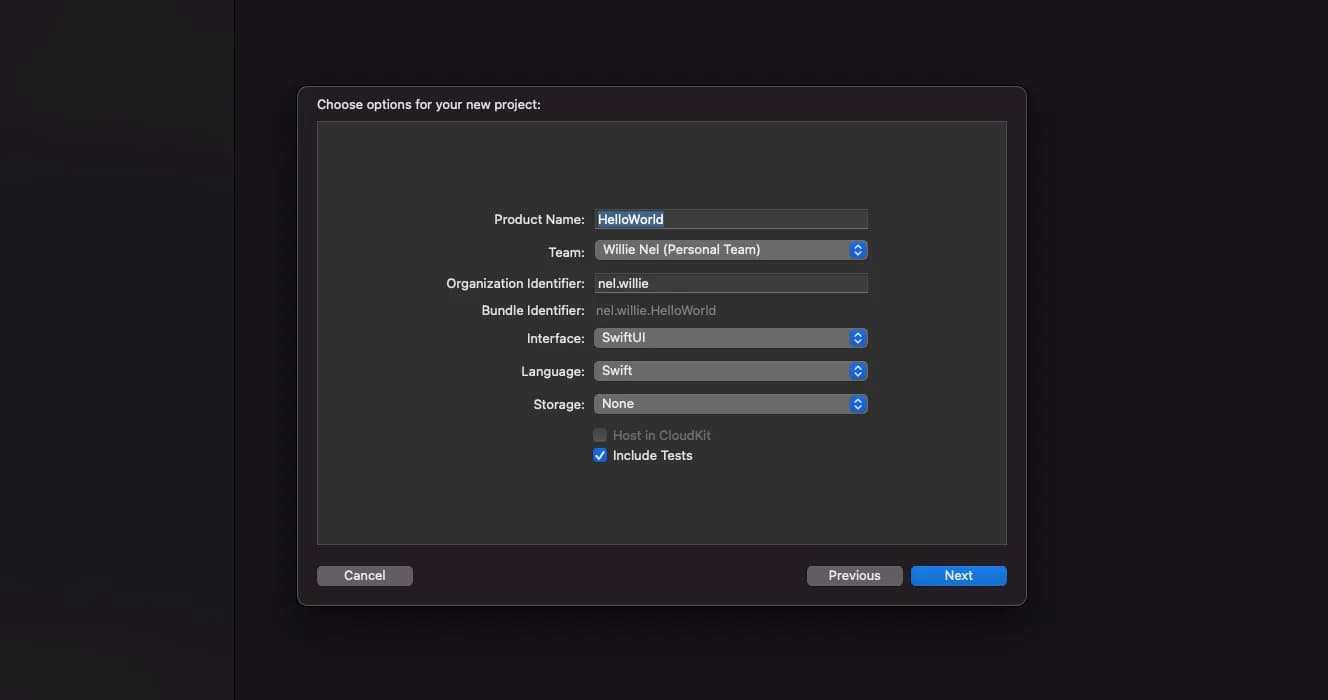

Take note of your Bundle Identifier - you will need this later.

"Enter project details"

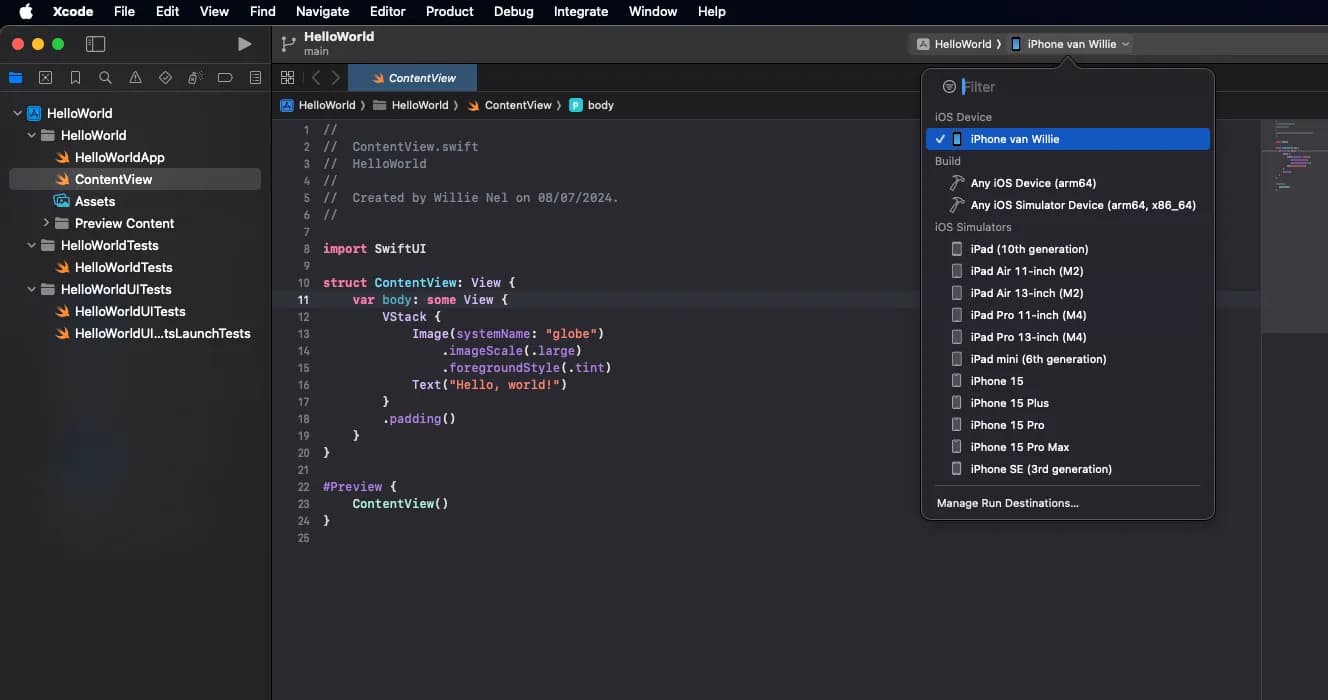

Select your device as the Run Destination

"Select run destination"

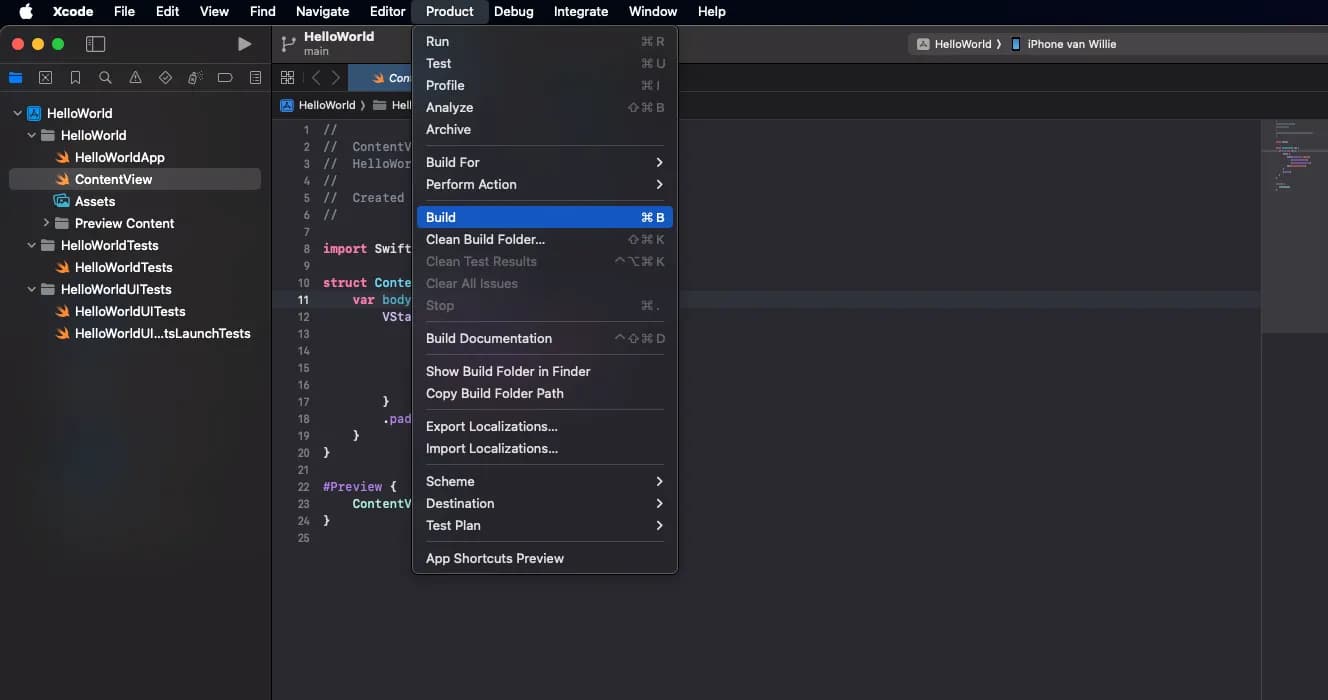

Build your project

"Build project"

After a successful build you can copy the configuration profile - remember to replace YOUR_PRODUCT_HASH with the value on your filesystem.

cp ~/Library/Developer/Xcode/DerivedData/HelloWorld-YOUR_PRODUCT_HASH/Build/Products/Debug-iphoneos/HelloWorld.app/embedded.mobileprovision .

View the contents of the file and make sure that it contains the correct bundle identifier that you entered during project creation.

security cms -D -i embedded.mobileprovision

Take note of the application-identifier value - this should contain a hash appended to your bundle identifier.

<key>application-identifier</key>
<string>Z4CUW8W5KV.nel.willie.HelloWorld</string>

Sign the application

To sign the application you will use a tool called node-applesign which can be found here

The switches for this command:

applesign -c -b "nel.willie.HelloWorld" -m embedded.mobileprovision UnCrackable-Level1.ipa

This will produce a file called UnCrackable-Level1-resigned.ipa


Verify the application

In order to verify that the application was signed correctly you can unzip the resigned IPA file.

unzip UnCrackable-Level1-resigned.ipa
#Archive:  UnCrackable-Level1-resigned.ipa
#   creating: Payload/
#   creating: Payload/UnCrackable Level 1.app/
#   creating: Payload/UnCrackable Level 1.app/_CodeSignature/
#   ...

You can then read the contents of the configuration profile the same way you did earlier.

security cms -D -i Payload/UnCrackable\ Level\ 1.app/embedded.mobileprovision

To quickly verify if both files are the same you can use the diff command.

diff embedded.mobileprovision Payload/UnCrackable\ Level\ 1.app/embedded.mobileprovision

If there is no output in the terminal it means the two files are identical.


Deploy the application to your device

To deploy the application you will use a tool called ios-deploy which can be found here

The switches for this command:

ios-deploy -W -b UnCrackable-Level1-resigned.ipa

# [....] Waiting for iOS device to be connected
# ...
# [  9%] Copying Payload/UnCrackable Level 1.app/embedded.mobileprovision to device
# ...
# [ 52%] CreatingStagingDirectory
# [ 57%] ExtractingPackage
# [ 60%] InspectingPackage
# [ 65%] PreflightingApplication
# [ 70%] VerifyingApplication
# [ 75%] CreatingContainer
# [ 80%] InstallingApplication
# [ 85%] PostflightingApplication
# [ 90%] SandboxingApplication
# [ 95%] GeneratingApplicationMap
# [100%] InstallComplete
# [100%] Installed package UnCrackable-Level1-resigned.ipa

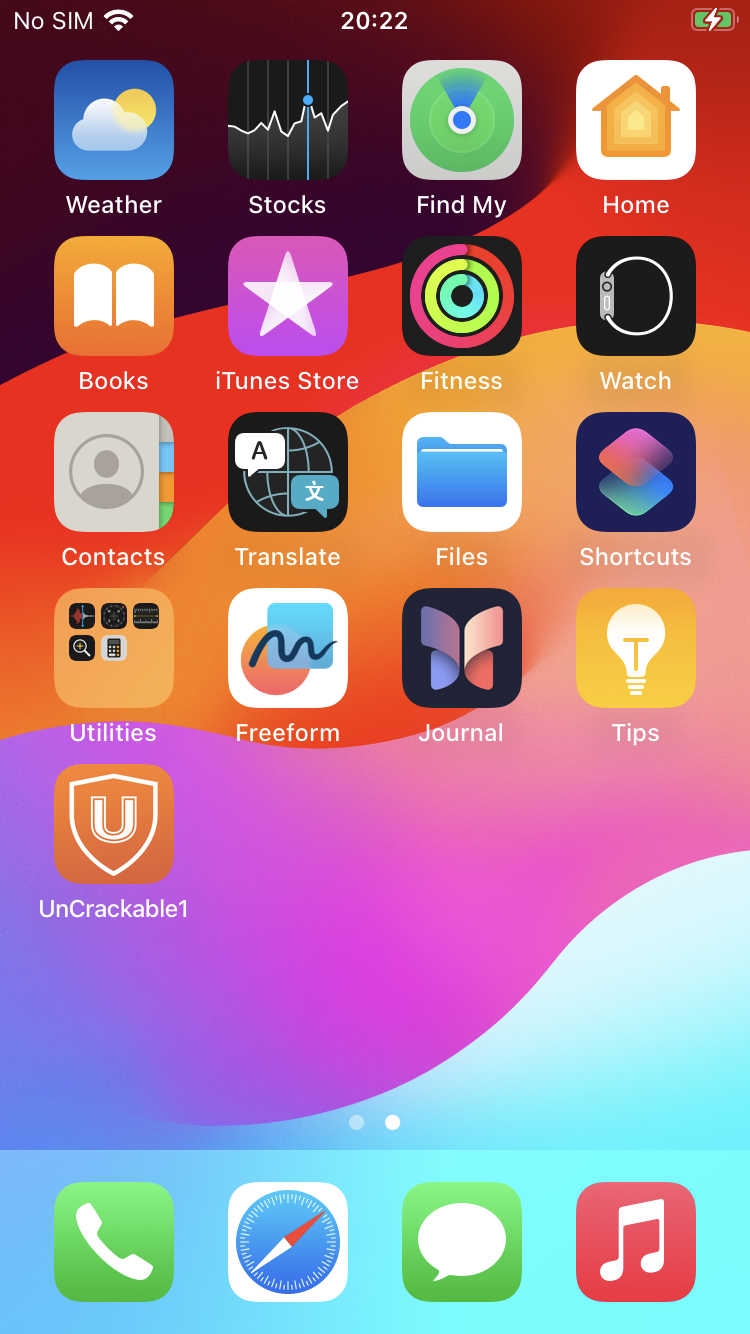

The application will now show up on your device.

iOS UnCrackable1 icon.

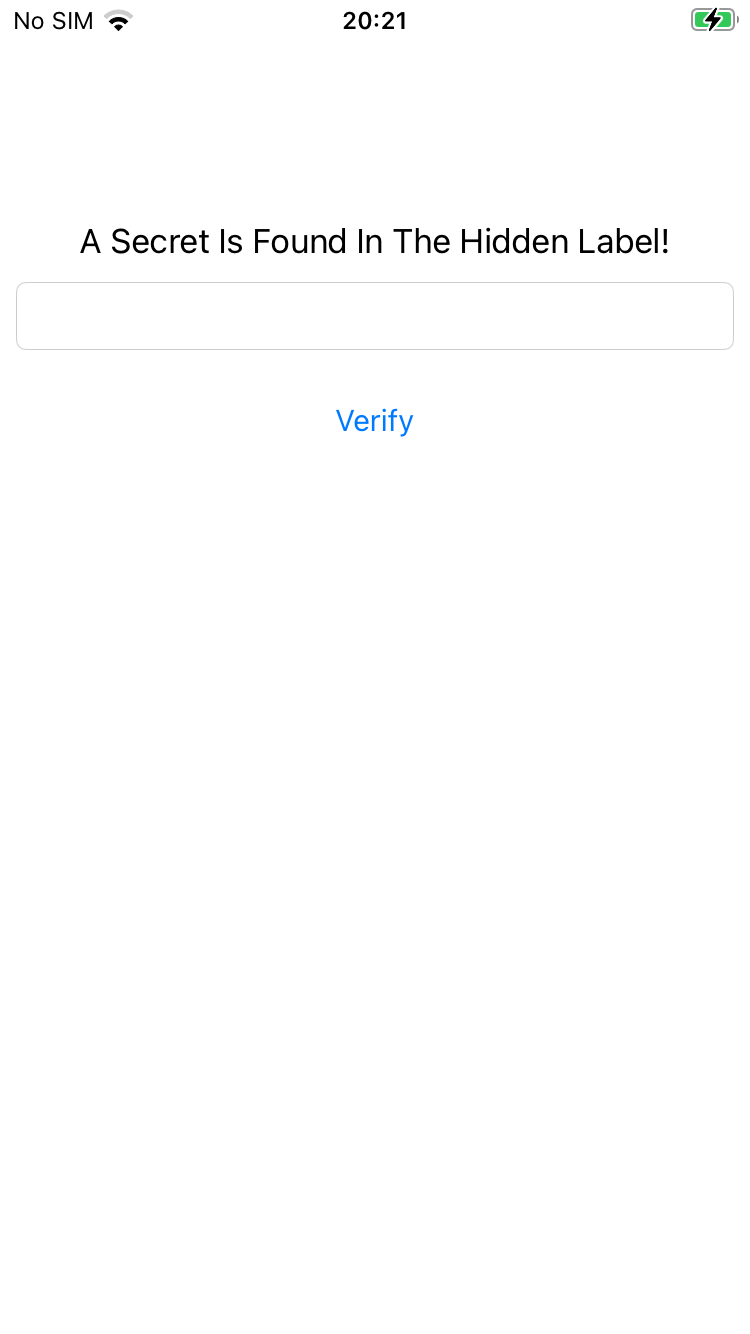

When you tap on the icon it will launch the applicaiton and display the home screen.

iOS UnCrackable1 landing screen.

Trust developer and verify application (Optional)

Depending on your configuration (Apple Developer Account vs Personal) you might have to trust the developer and verify the application on the device.

An excellent article that explains how to do this can be found here


Final thoughts

Now that I have a working application that can run on my device in debug mode I can perform runtime analysis on it.

In a future post I will cover configuring objection for iOS runtime analysis.
